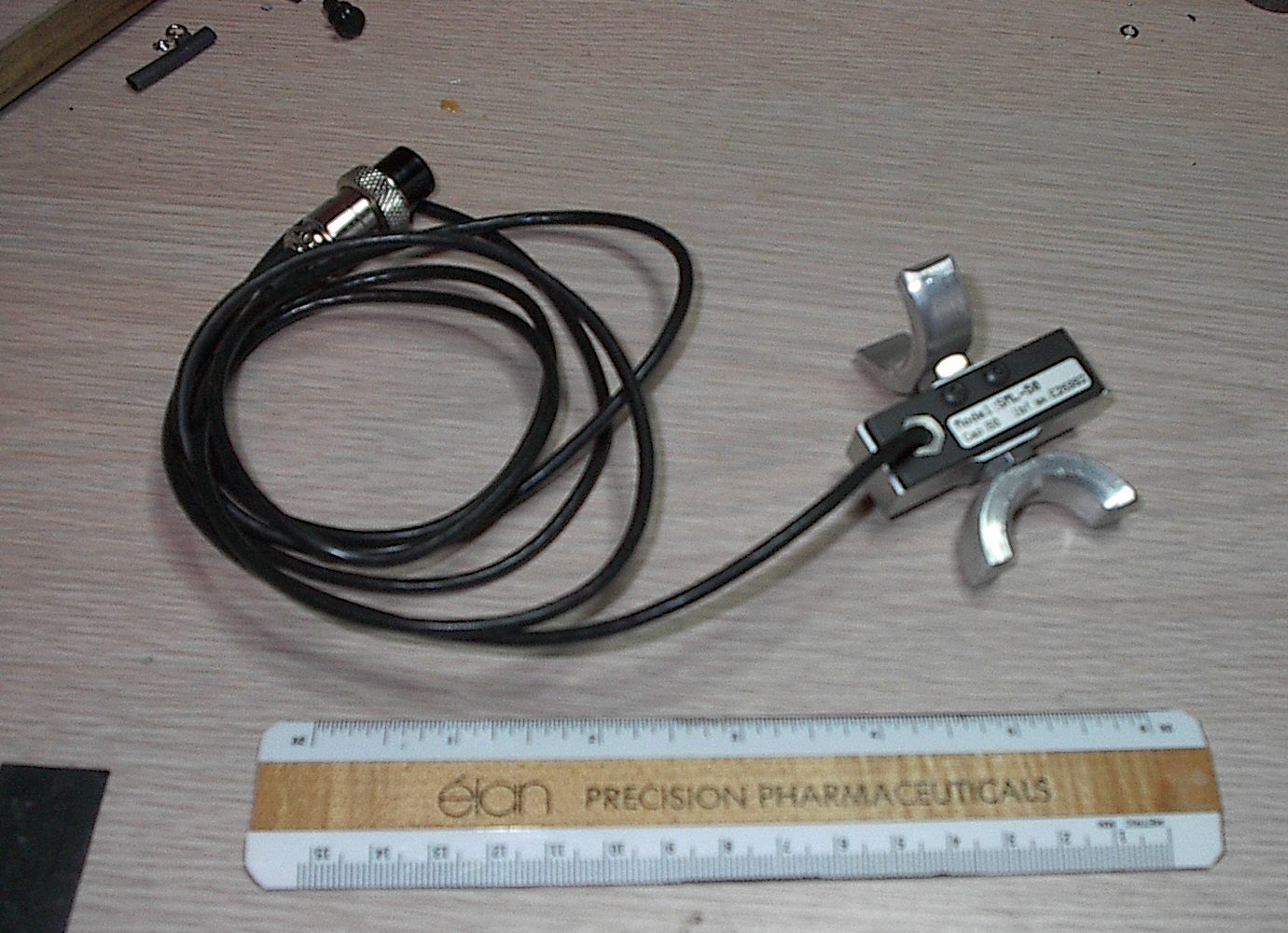

    PINCH TEST - complete with grips, cable and connector

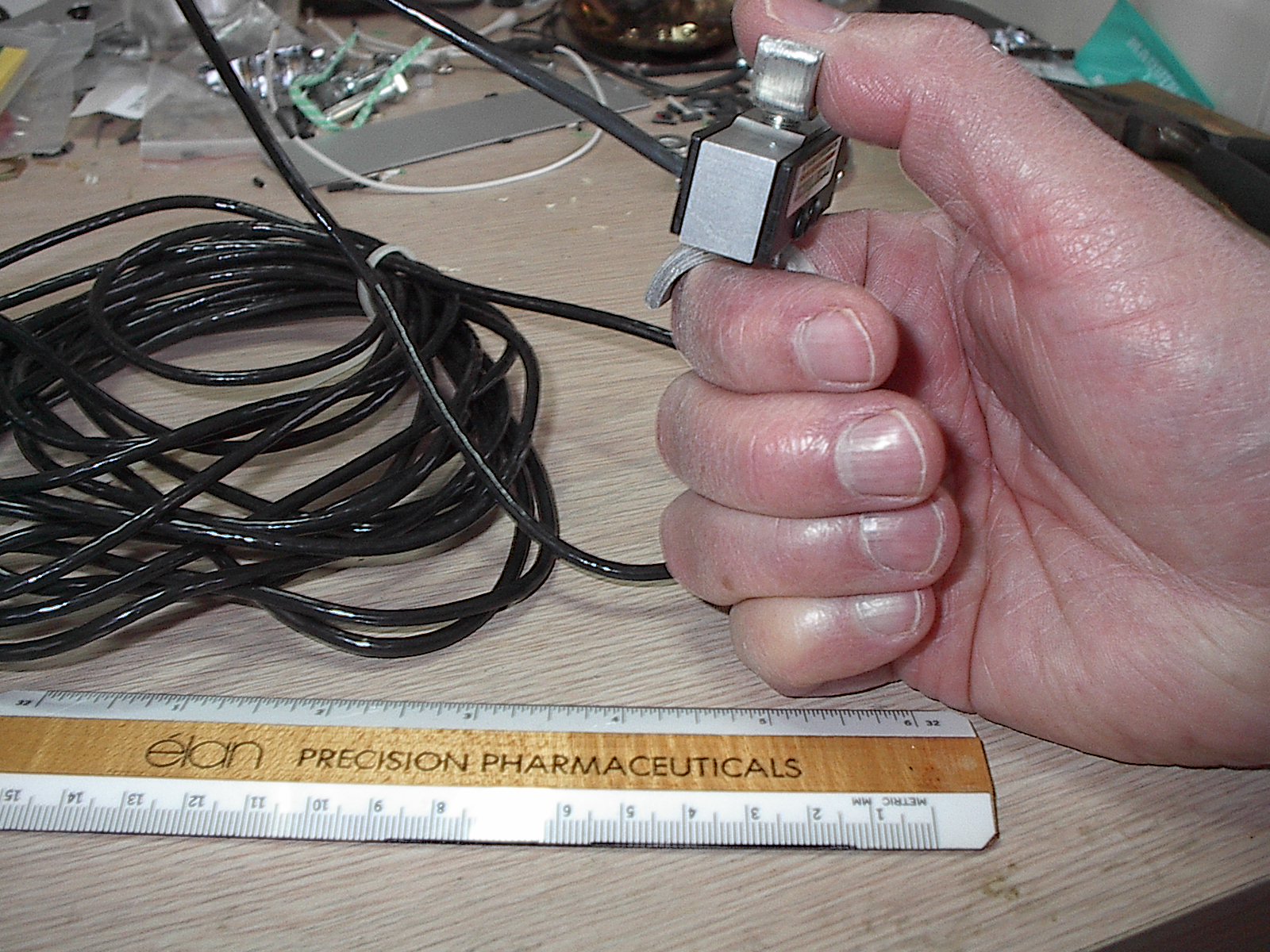

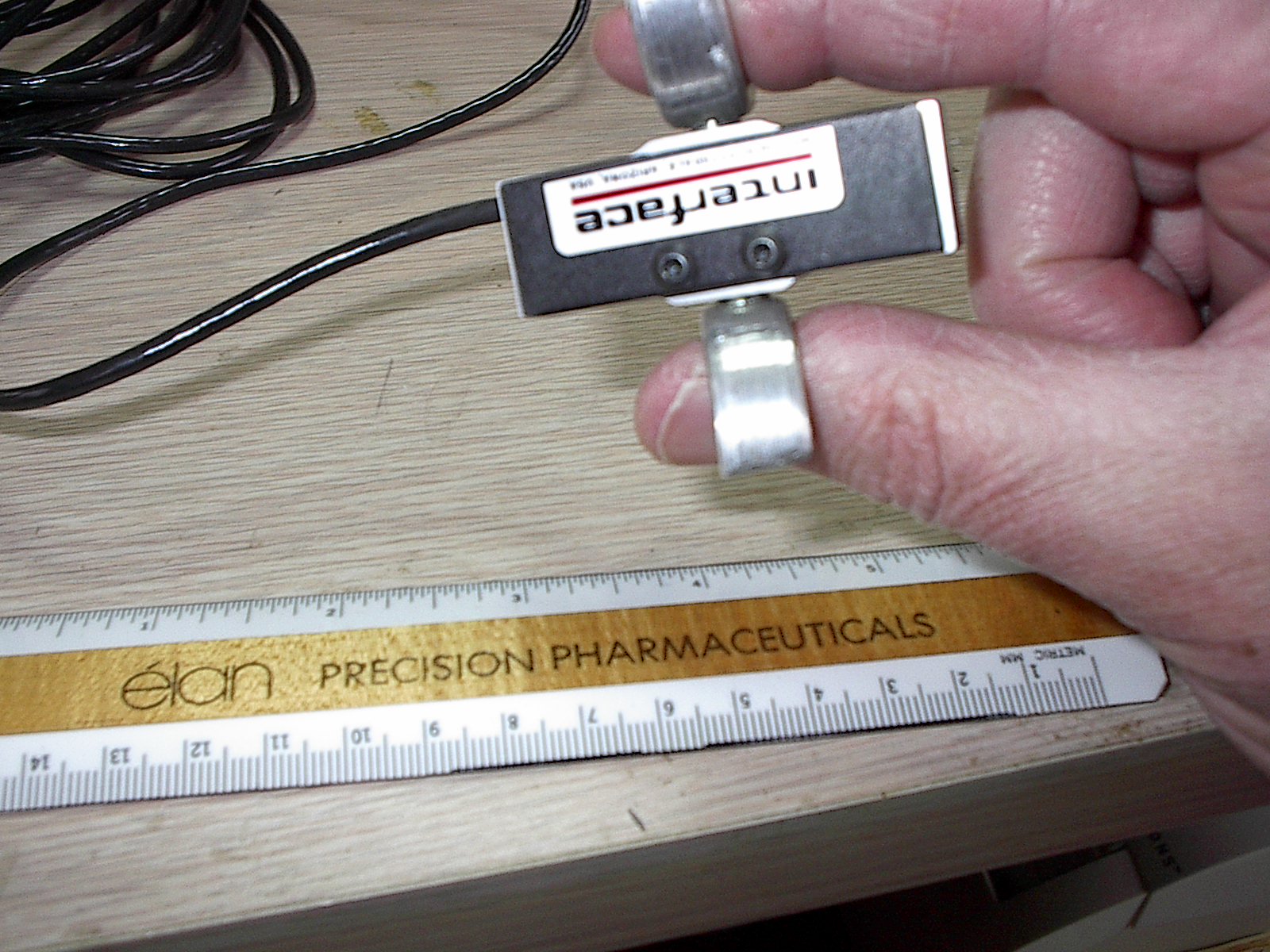

    Key (Lateral) Test, Thumb to opposing Tip, etc.

    CAPACITY          50 lbf

    ACCURACY - (MAX ERROR)
    Nonlinearity -% FS                      + 0.05
    Hysteresis - % FS                       + 0.05
    Nonrepeatability - % RO              + 0.03
    Creep, in 20 min. - %                  + 0.05

    TEMPERATURE
    Operating Range - F                   -65 to 200
    Operating Range - C                   -55 to 90

    ELECTRICAL
    Rated Output - mV/V (Nominal)      2.0
    Zero Balance - % RO                   +1.0
    Excitation Voltage - MAX              15 VDC

    MECHANICAL
    Safe Overload - % CAP       + 150
